Bus Boards

These DIY Eurorack bus boards are design by Channel 37 to use with the Mean Well RT65-B switching power supply. It is advised to use 1-2 bus boards per Meanwell power supply.

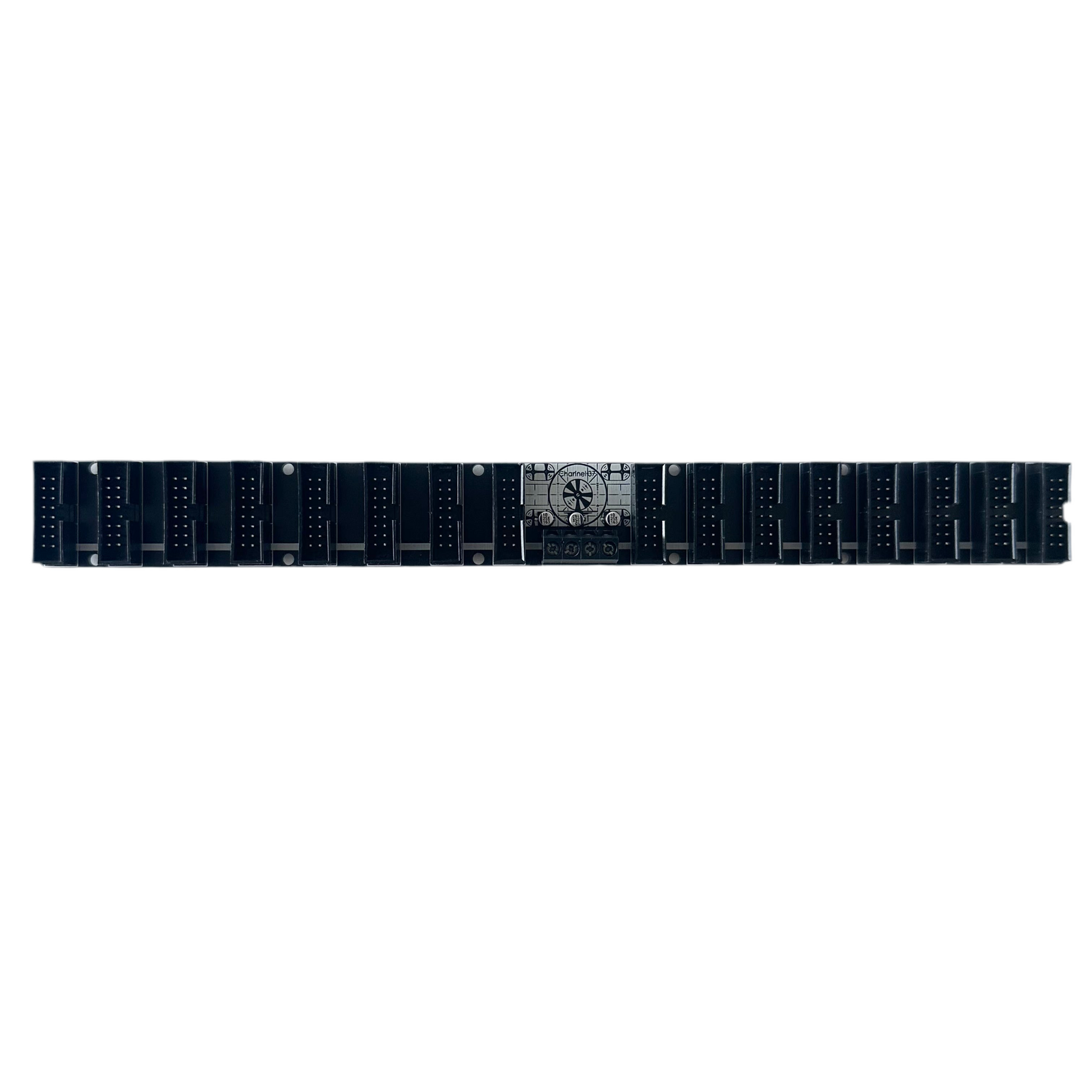

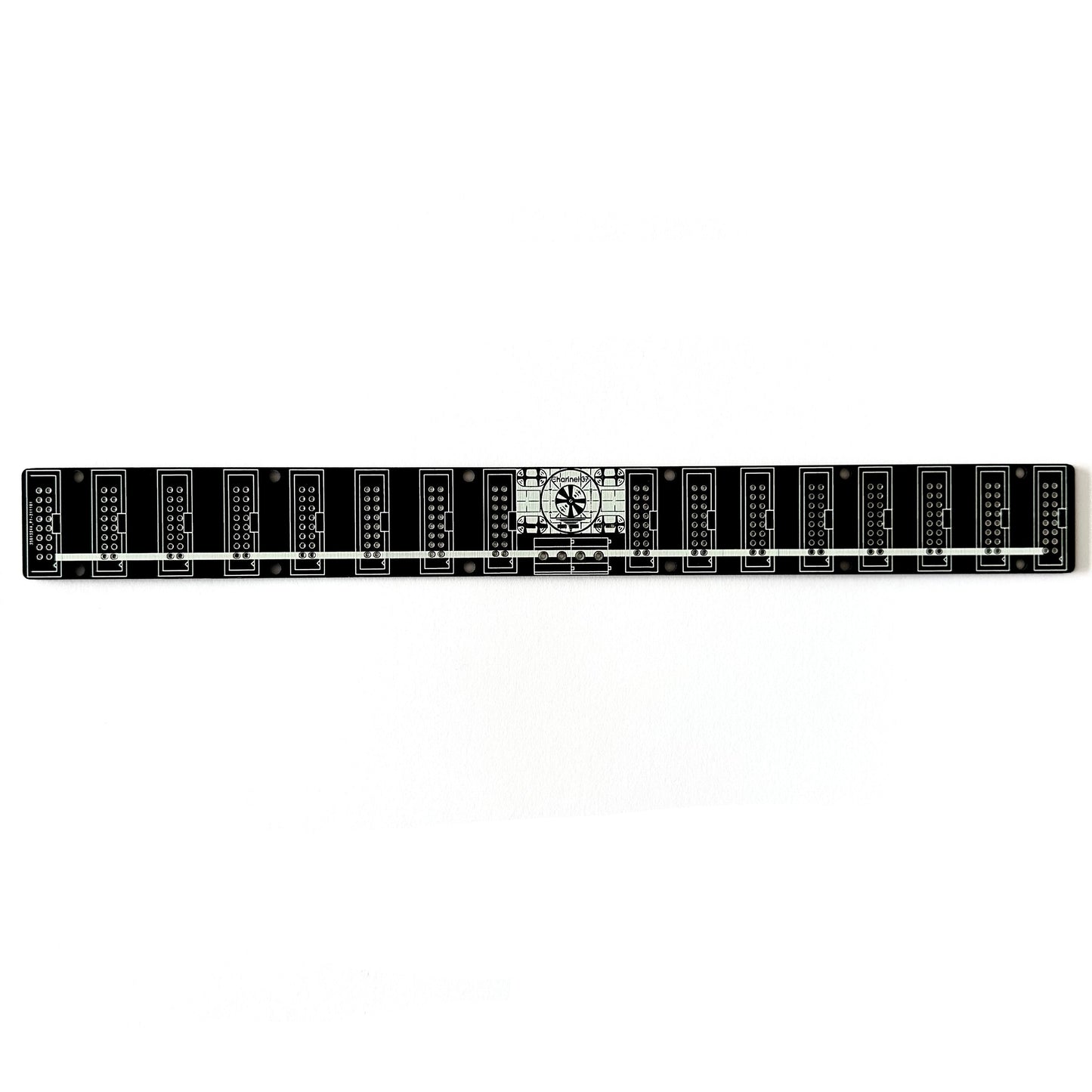

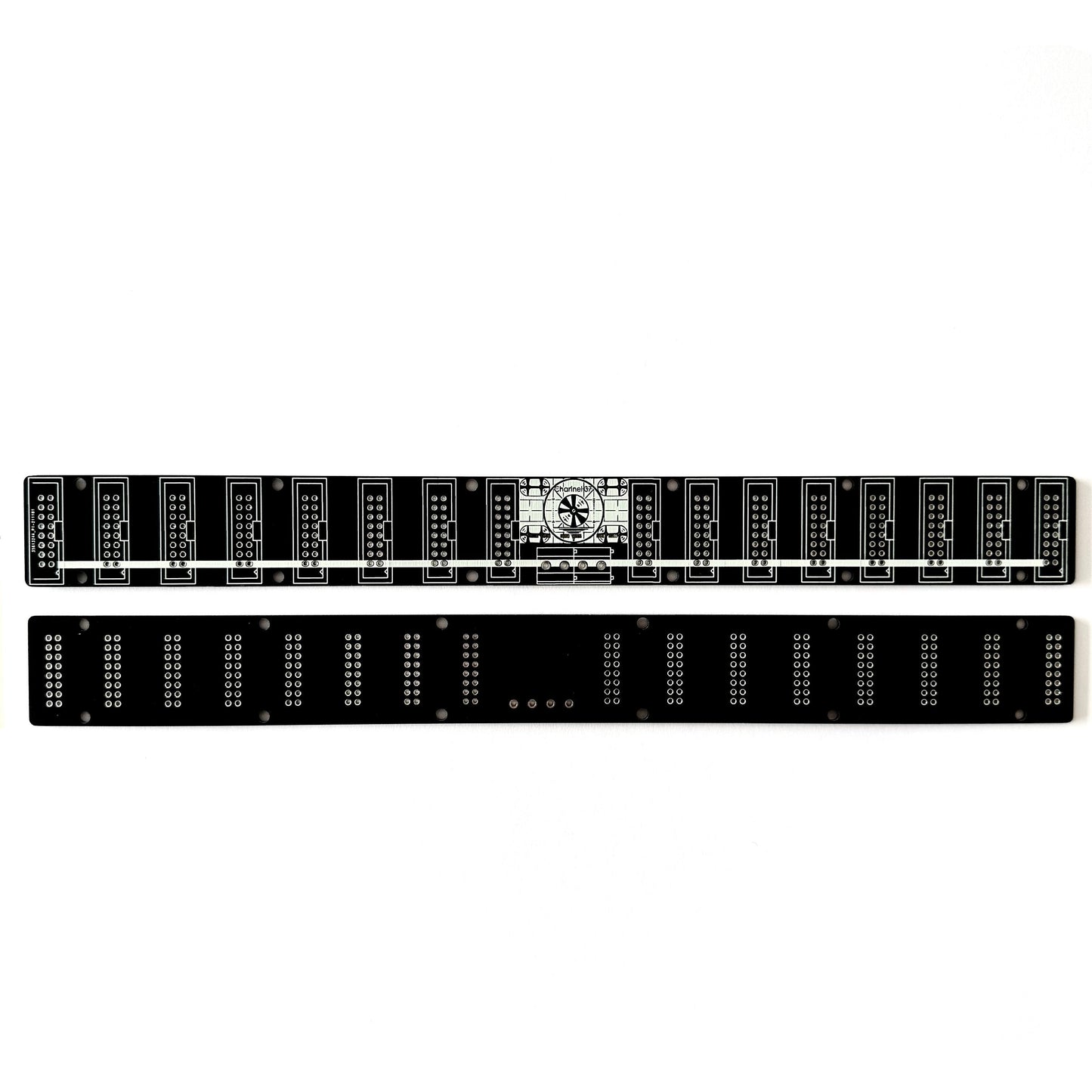

On the board you will find

• (Footprint for) 16 boxed headers to connect your modules
• (Footprint for) 2 terminal blocks to connect your power supply / ground/earth wire

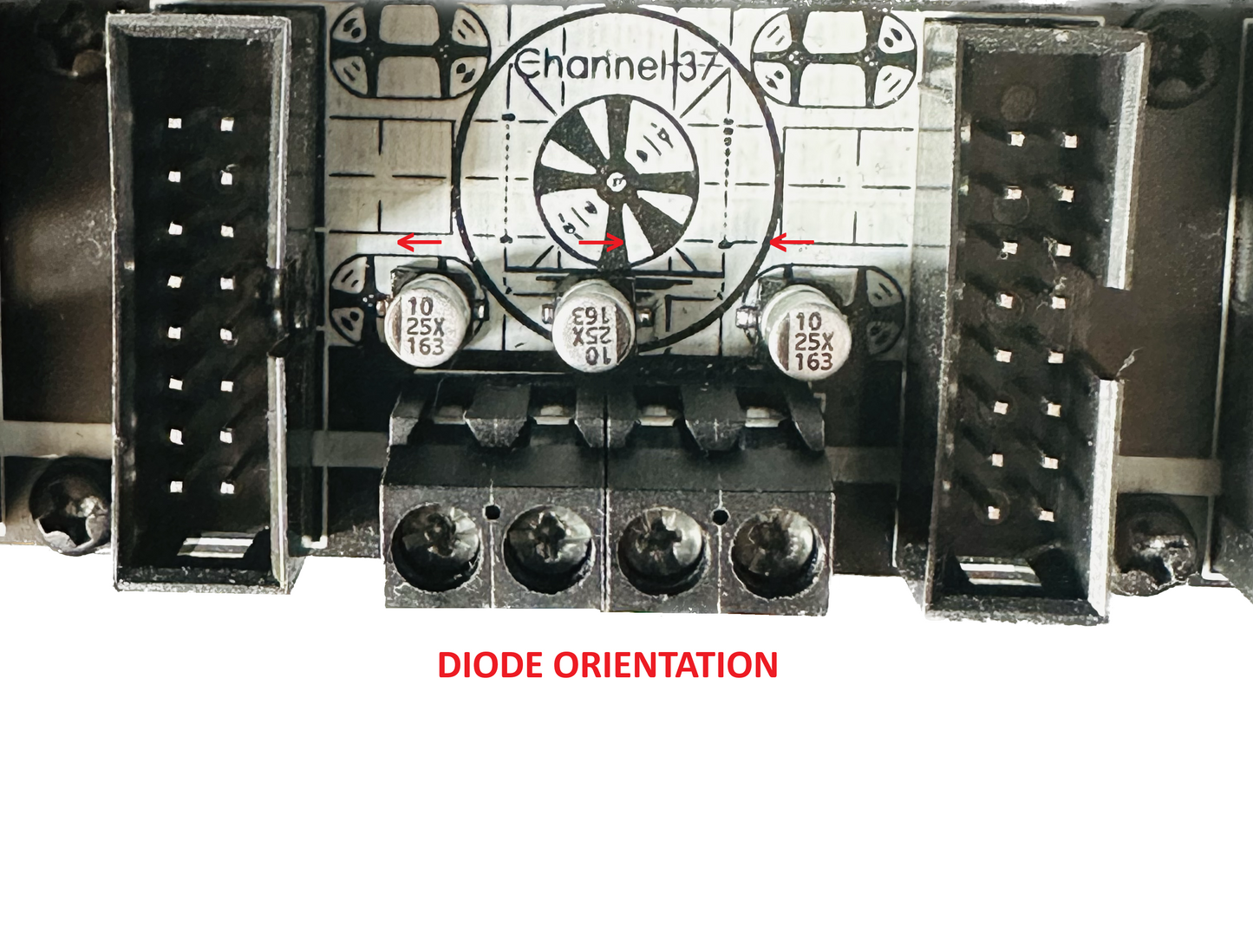

• (Footprint for) 3 solder pad locations for 10uF 25V+ SMD capacitors
• 12 screw holes for assembling them into your case
• White line indicator for the -12V rail

Check the last foto to see how to connect the bus boards to your power supply.

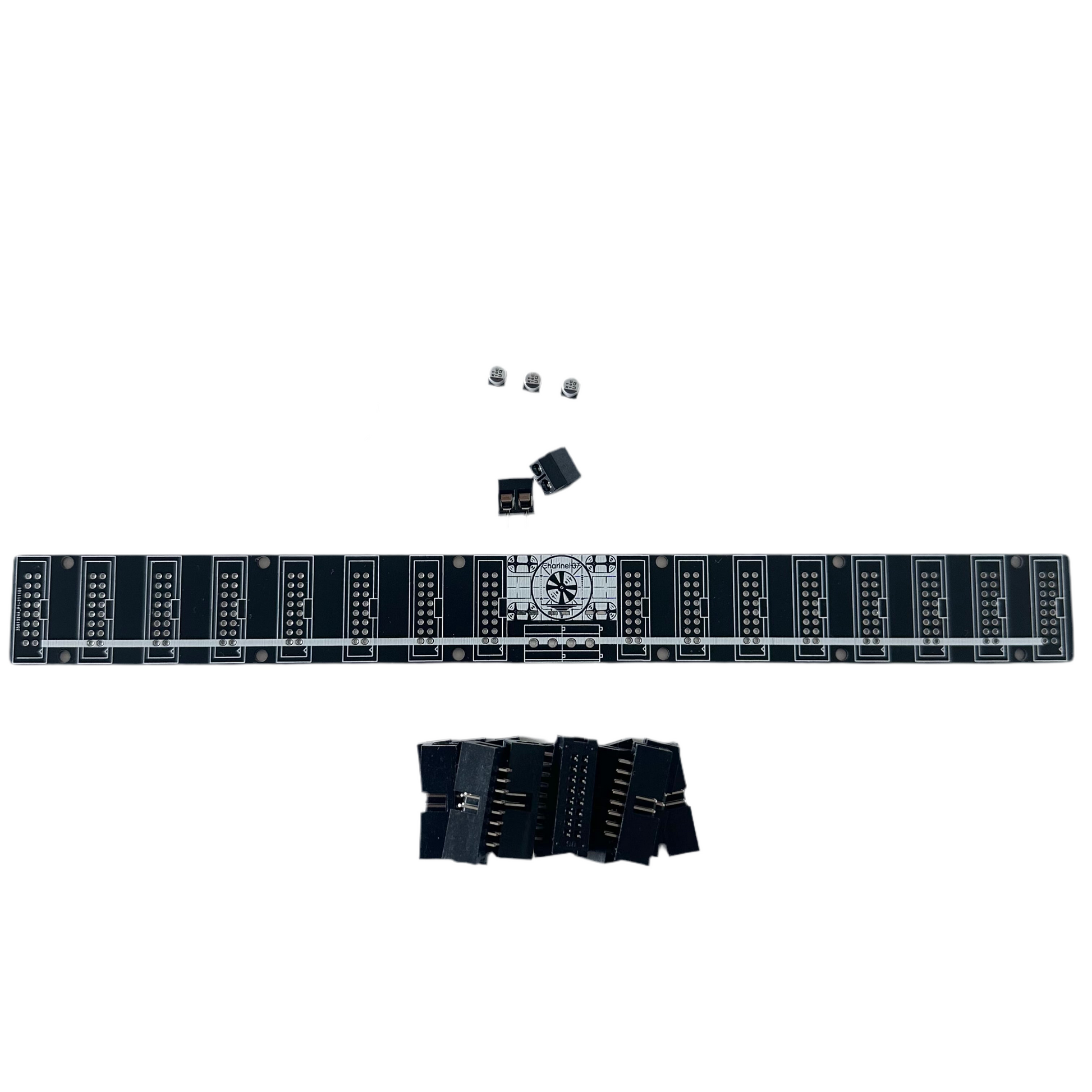

There are options for solely buying the bus boards, buying the bus boards incl. components (Full Kit) or buying the bus boards pre-assembled (Pre-soldered).

The copper traces within these bus boards are thick and absorb a lot of heat! Make sure to crank up your soldering iron and use enough tin when soldering the boxed headers and terminal blocks.

Don't forget to check the bus boards for shorts before assembling them into your case!
